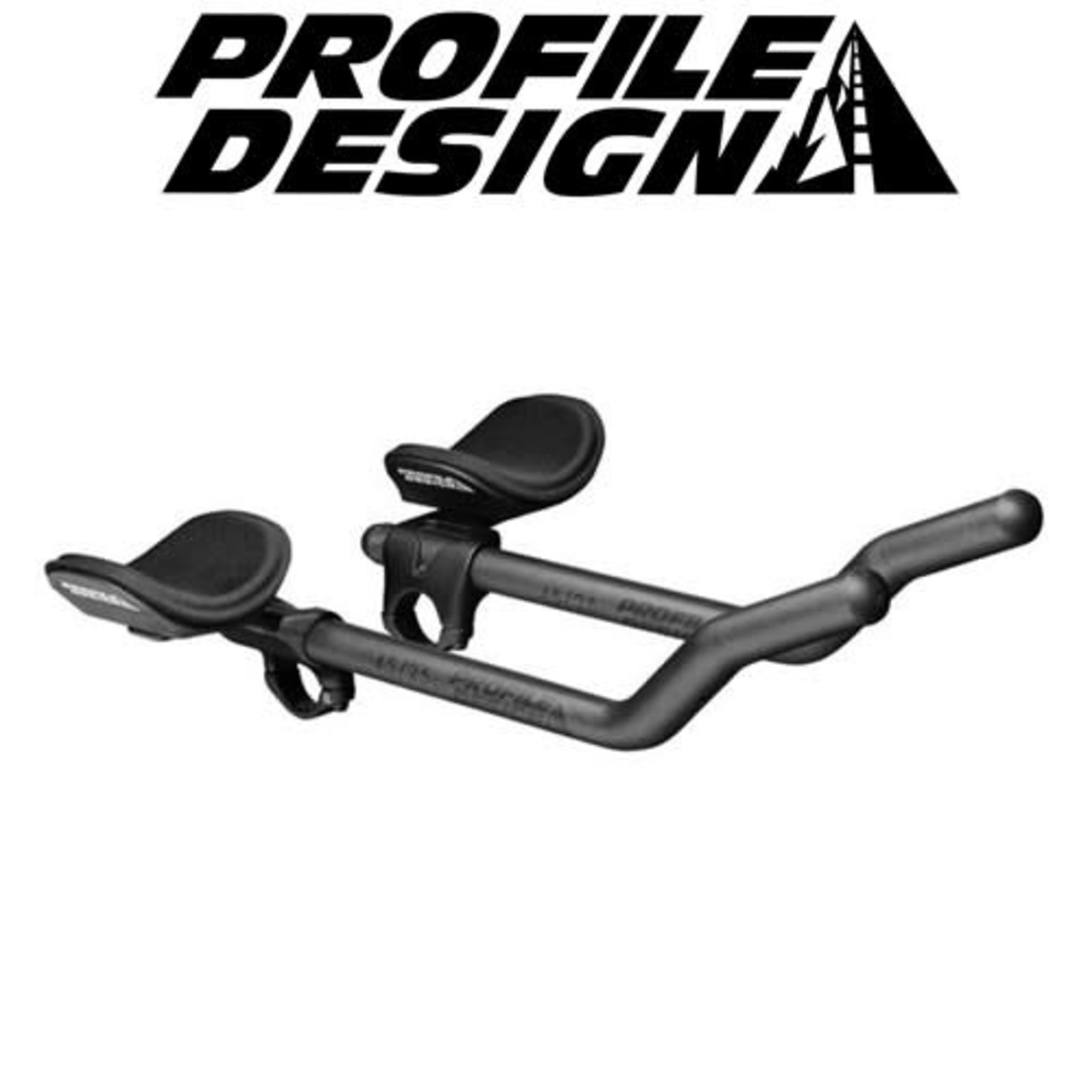

Profile Design Supersonic/Ergo/45/25C Aerobar

Article number: RHCSNC451
$405.00 $399.00 Incl. tax

The Supersonic bracket (previously know as the J5) is the first and premier model of the new generation Profile Design brackets. It offers easier adjustments and a greater fit range than anything that came before it.

The rating of this product is 0 out of 5

(0)
Out of stock

Description

The Supersonic bracket (previously know as the J5) is the first and premier model of the new generation Profile Design brackets. It offers easier adjustments and a greater fit range than anything that came before it.

Paring this bracket with the ergo aremrest offers industry leading fit options and greater comfort.

Performance

The Supersonic/Ergo platform is designed to give riders the freedom to find their best possible position with a huge range of independence adjustments.

Fit Data

Armrest Offset: -85mm to -17.5mm in 7.5mm steps
Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
Armrest Stack: 58.5mm (no riser kit) to 138.5mm in 5mm increments (With aftermarket Riser Kit)
There are 80 distinct position options achievable just by moving the armrests. Combine that with risers and this bar offers 1440 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily. As a clip on bar it is also possible to adjust the extension width and tilt easily. Rotating the pads 180 degrees alters the reach offset by 7.5mm - the smallest increments of any aerobar that doesn't have sliding parts.

Orgin

The supersonic was the first of our generation brackets - resulting from careful analysis of the way riders use their aerobars and the adjustments that need to be made.

The Ergo armrest is an integrl part of the overall adjustability scheme. The dual - offset design (shared with Race and Boom armrest) gives the most precise adjustment range of any armrest on the market. This, along with the evenly curved shape, allows it to work well for the majority of riders. Swapping the pads from one side to the other changes the width by 9.25mm per side for a total change in pad with of 18.5mm.

Extensions

Extension Shape: The 4525c extensions offer a 45 deg lower and 25 deg upper section with a 7.5mm lateral shift per side. This allows the rider to choose between a low, short reach position or a high hands, stretched position for aerodynamics. They are 400mm long and can be cut to suit nearly every rider. They are drilled for rear-exit cable routing.
Features
Bracket: Supersonic
Clamp Diameter: 31.8mm (26.0 w/Shims)
Armrest: Ergo / 10mm Pads
Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)
Armrest Offset: -85mm to -17.5mm in 7.5mm steps
Armrest Stack: The minimum is 58.5mm and the bracket is compatible with our existing risers which add up to 138.5mm stack with (70mm of spacers added)

Weight

Bracket: 266g
Armrest: 145g
Extensions: 242g
Total: 653g
